Centrifugal Casting & Rebabbitting

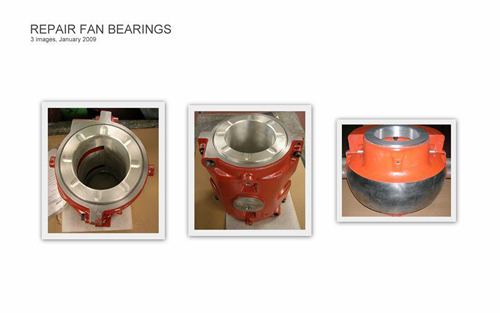

Fusion Babbitting is a leader in babbitt bearing repair in the U.S. Our centrifugal casting process allows us to restore babbitt bearings back to their original OEM specifications. Combining centrifugal force and rapid cooling, we can ensure the new babbitt is poured free of impurities and imperfections, resulting in the highest-quality bond strength & bearing integrity as well as extended bearing life. To validate the quality of your repaired bearing, we will provide you with an Ultrasonic Bond Certificate. We are proud to serve industries whose operations rely on turbines, pumps, motors, fans, and other industrial equipment.
Why should you choose to centrifugally cast a babbitt bearing?
- By spinning a bearing at the proper RPM, the molten Babbitt can be poured under pressure. This centrifugal force combined with rapid cooling will provide the best bond, and bearing integrity.
- This process ensures that the poured babbitt is free of impurities, gasses, or imperfections. Thus providing the best bond strength, and extending the life of your bearing!
- Fusion Babbitting will provide ultrasonic bond certification, and dye penentrant testing.
- Fusion also maintains an inventory of certified babbitt, allowing Fusion to match any OEM specification of babbitt that your bearing would require.
Fusion also employs two different sized centrifugal spin casting machines. Our largest spinner can cast a bearing with an outside diameter of 72″ and up to 7000 lbs. Our smaller spinner can cast a bearing with an outside diameter of 36″ and up to 1500lbs. The size, mass and configuration of your bearing, will determine the machine we use.
Standard Babbitt Specifications
|BABBITT SPEC. NO.||TIN %||COPPER %||ANTIMONY %||LEAD %||ARSENIC %|
|ASTM B23 – 49 GR.1||90 – 92||4 – 5||4 – 5||.35 max||.10 max|
|ASTM B23 – 49 GR.2||88 – 90||3 – 4||7 – 8||.35 max||.10 max|
|ASTM B23 – 49 GR.3||83 – 85||7.5 – 8.5||7.5 – 8.5||.35 max||.10 max|
|SAE 11||86 – 88||5 – 6||6 – 7||.35 max||.10 max|
|SAE 12||88 – 90||3 – 4||7.25 – 7.50||.35 max||.10 max|
|QQT-390 GR.2||88 – 90||4 – 5||7 – 8||.35 max||.10 max|
|QQT-390 GR.3||83 – 85||7.5 – 8.5||7.5 – 8.5||.35 max||.10 max|
|ACM-3021||88 – 90||3 – 4||7 – 8||.05 max||.01 max|
|ACM-3022||82.5 – 84.5||5 – 6||10 – 12||.50 max||.10 max|
Quality of Bond
Fusion Babbitting procedures ensure the highest Quality Bond in the industry 98-100% mechanically and chemically. We will provide Ultrasonic Bond Certifications to validate bearing quality.
